Review: FaitalPro 12HP1060

Petr Berka

— 2 min read
Review: FaitalPro 12HP1060

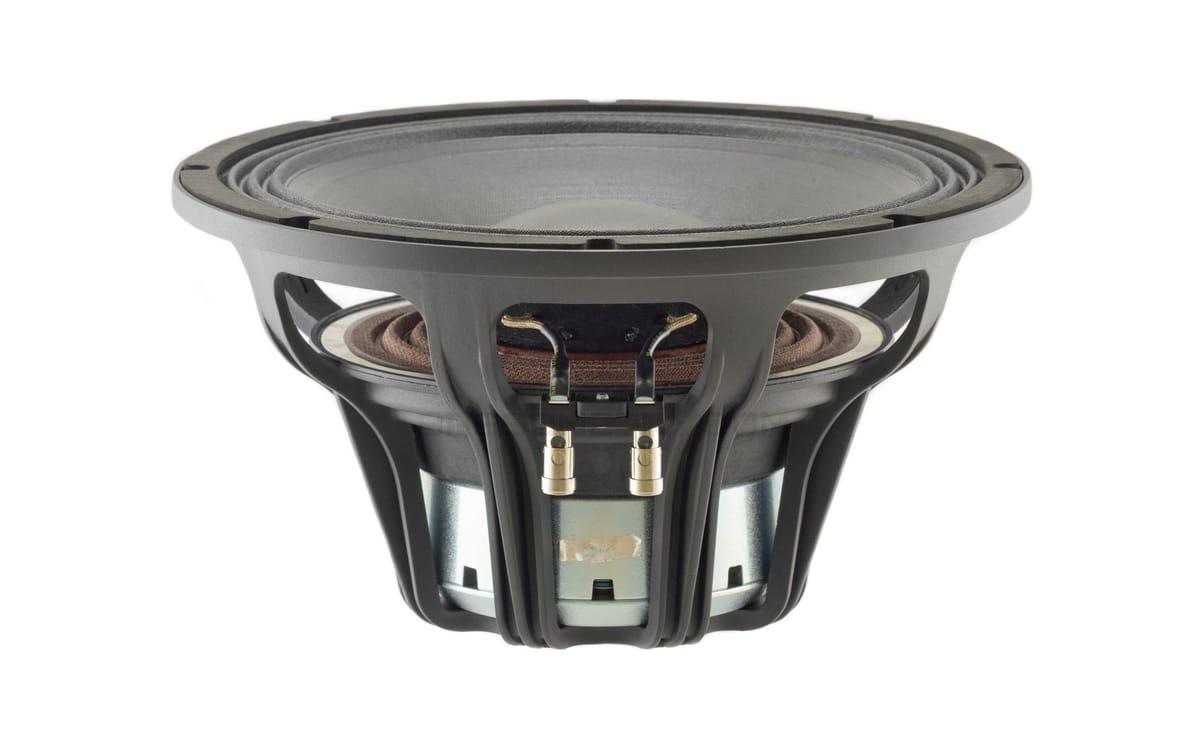

FaitalPro 12HP1060 intro

Here

This review is sponsored by ms-sound (www.ms-sound.cz), who kindly provided the speaker for testing. Rest assured, that while sponsorships are very welcome, all technical results and measurements remain completely independent and unbiased.

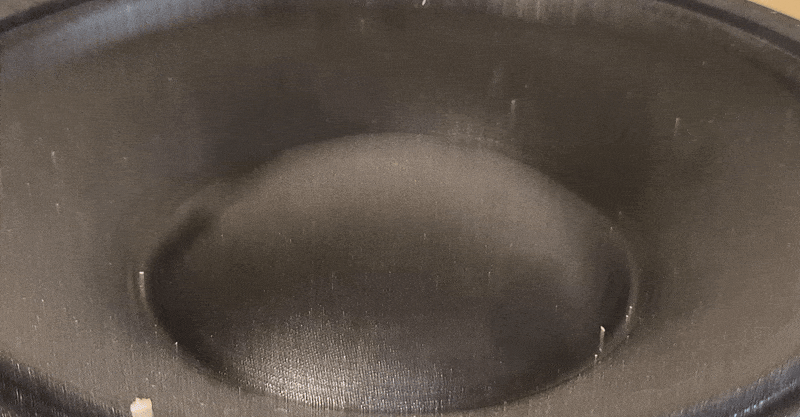

12HP1060 ping-pong
Parameter Manufacturer Specs Measured sample
Re [Ω] 2.9 2.95
Fs [Hz] 45 59.1
Sd [cm²] 518 518
Bl [Tm] 20.7 21.9
Qms 12.1 9.95
Qes 0.26 0.3
Qts 0.25 0.3
Le [mH] 1.13 1.03
Cms [um/N] 90 53
Mms [g] 138.7 137
Vas [l] 36.9 20.0
Spl [dB/1W/1m] 95 94.5
Xmax [mm] 12.45 11+

ds

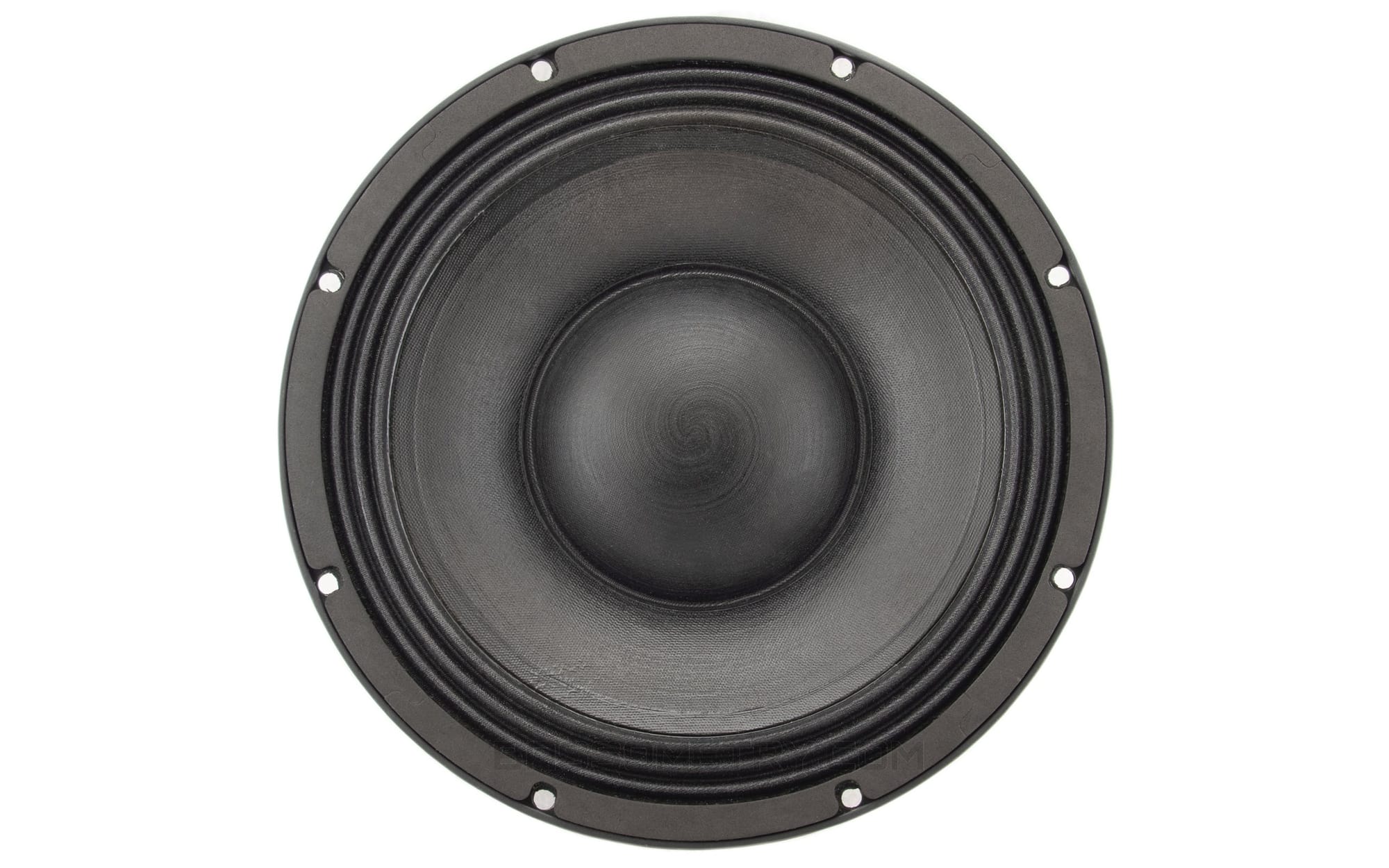

FaitalPro 12HP1060 front view

ds

ds

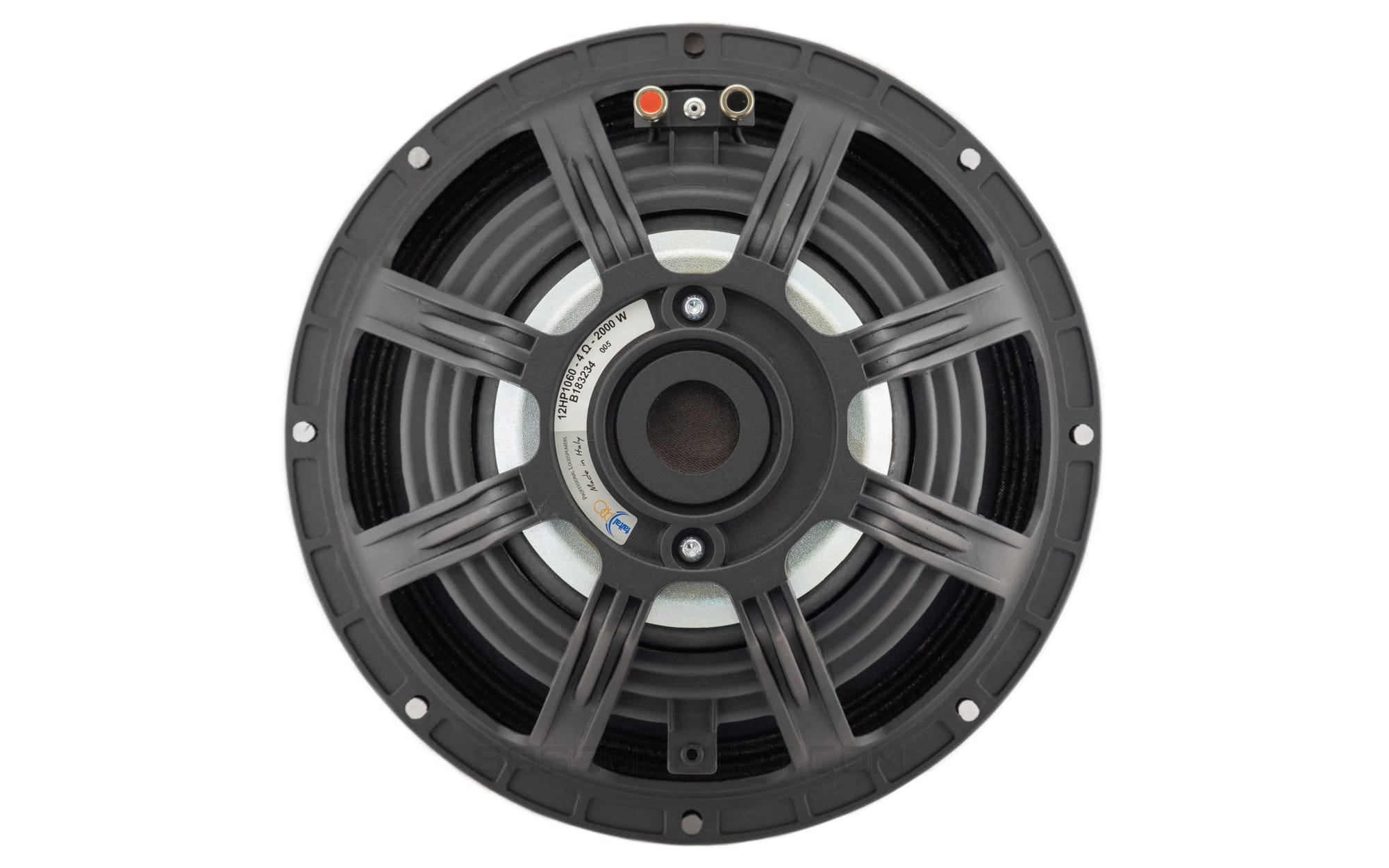

FaitalPro 12HP1060 rear view

sd

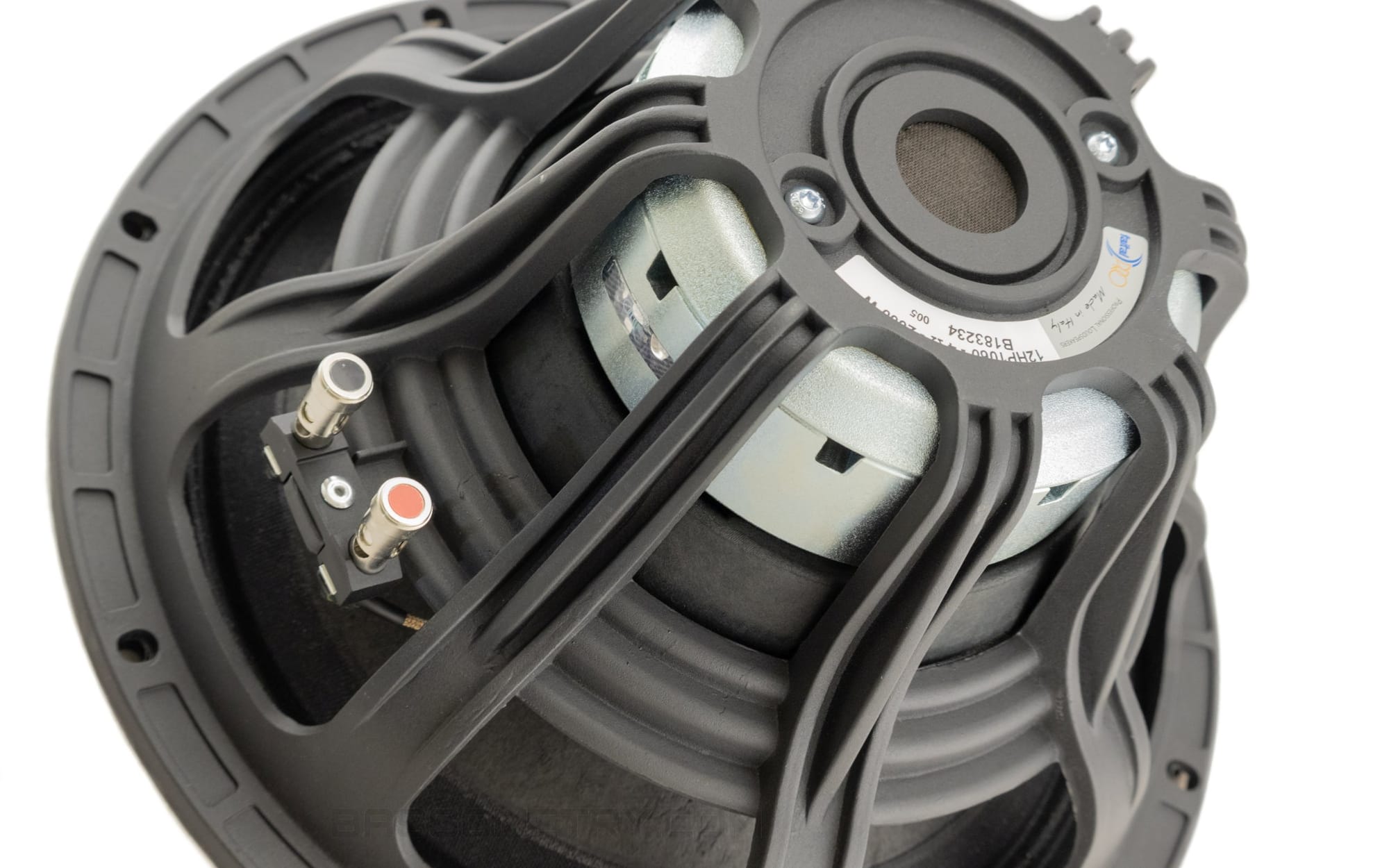

FaitalPro 12HP1060 performance

sd

sasa

sa

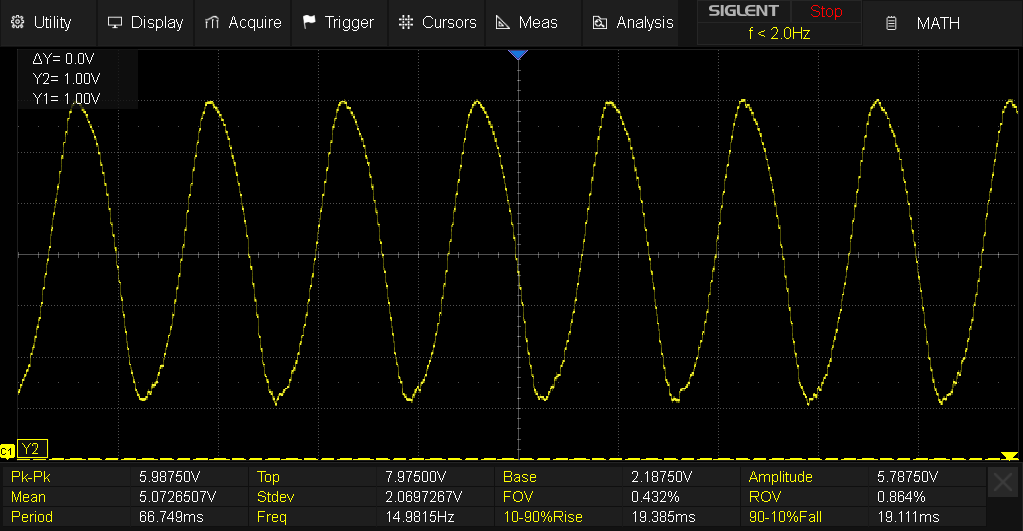

FaitalPro 12HP1060 DC offset figure

s

s

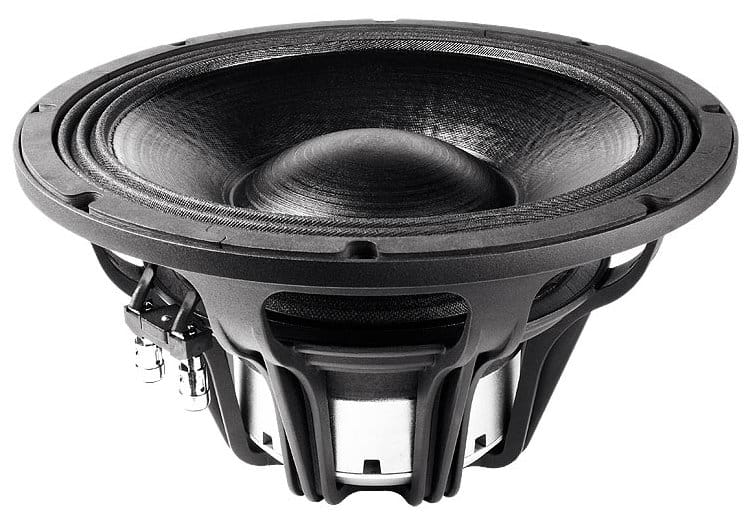

FaitalPro 12HP1060 manufacturer image

aas

Dustcap 5"

Spider 8"

Leads sideways to the cone good but short protection transfer from the cone

Venting
